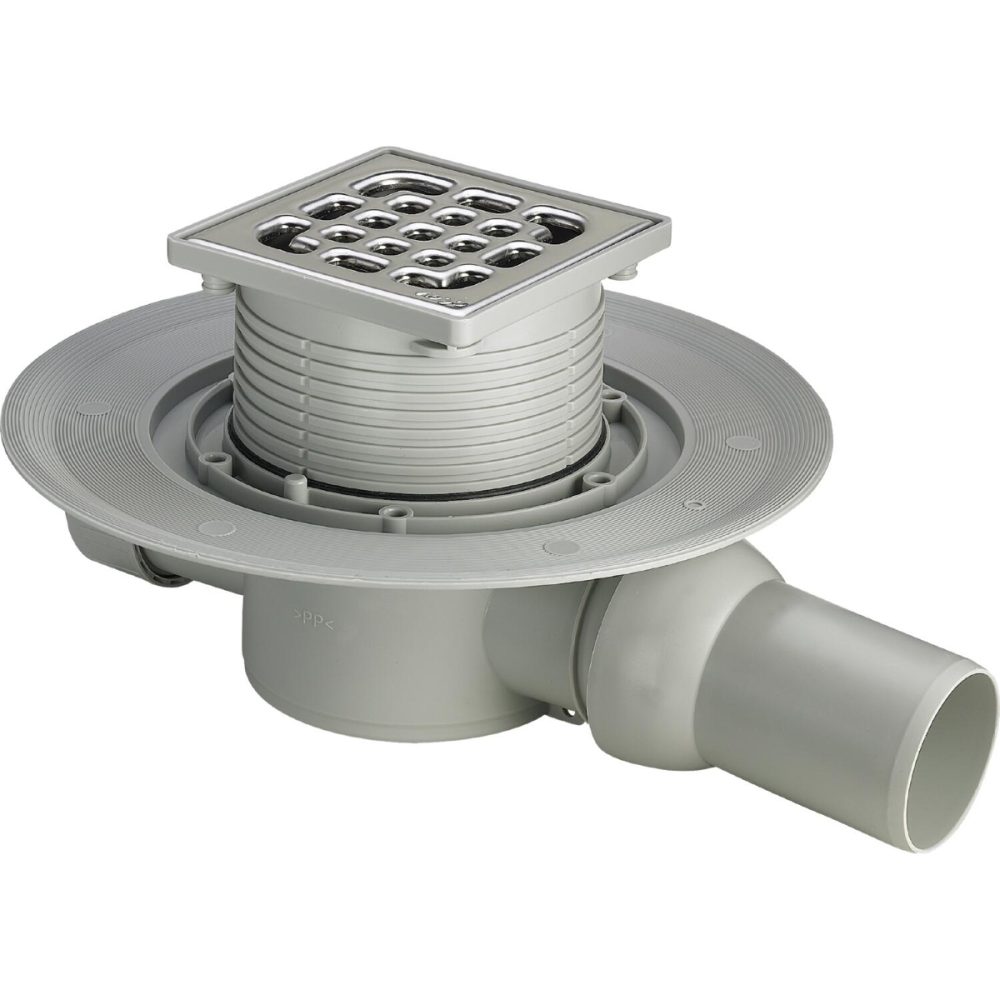

Viega Advantix complete bathroom drain set, for standard installation DN 50 water seal height: 30 mm, stainless steel
Original price was: £114.00.£33.60Current price is: £33.60.
The Viega Advantix bath drain is a plastic floor drain system with a system dimension of 100. It includes a 100 × 100 mm rotatable and height-adjustable top, a stainless steel grate (1.4301), and a removable odour trap. Designed for bathroom installations, it offers reliable drainage performance in accordance with DIN EN 1253.
-
Description
-
Additional information
-
Reviews (0)
The Viega Advantix bath drain is designed for bathroom floor drainage and is manufactured with a plastic body and a system dimension of 100. The set includes a 100 × 100 mm rotatable and height-adjustable top, a plastic frame, and a stainless steel grate made of material 1.4301.
The drain is supplied with a plug, sealing flange, and a removable odour trap. It features an DN 40 inlet and a drain pipe with ball joint, allowing flexible installation. The system has a water seal height of 30 mm and is classified with a load class K = 300 kg.
The drainage capacity is tested in accordance with DIN EN 1253, achieving 0.4 l/s at an accumulation height of 10 mmand 0.6 l/s at an accumulation height of 20 mm. The product corresponds to Model 4935.1.
Components
-
Top 100 × 100 mm, rotatable and height-adjustable
-
Plastic frame
-
Stainless steel grate (1.4301)
-
Plug
-
Sealing flange
-
Removable odour trap
-
DN 40 inlet
-
Drain pipe with ball joint
