Viega Advantix Bath Drain Model 4926 DN50 Vertical, 100×100mm Stainless Steel

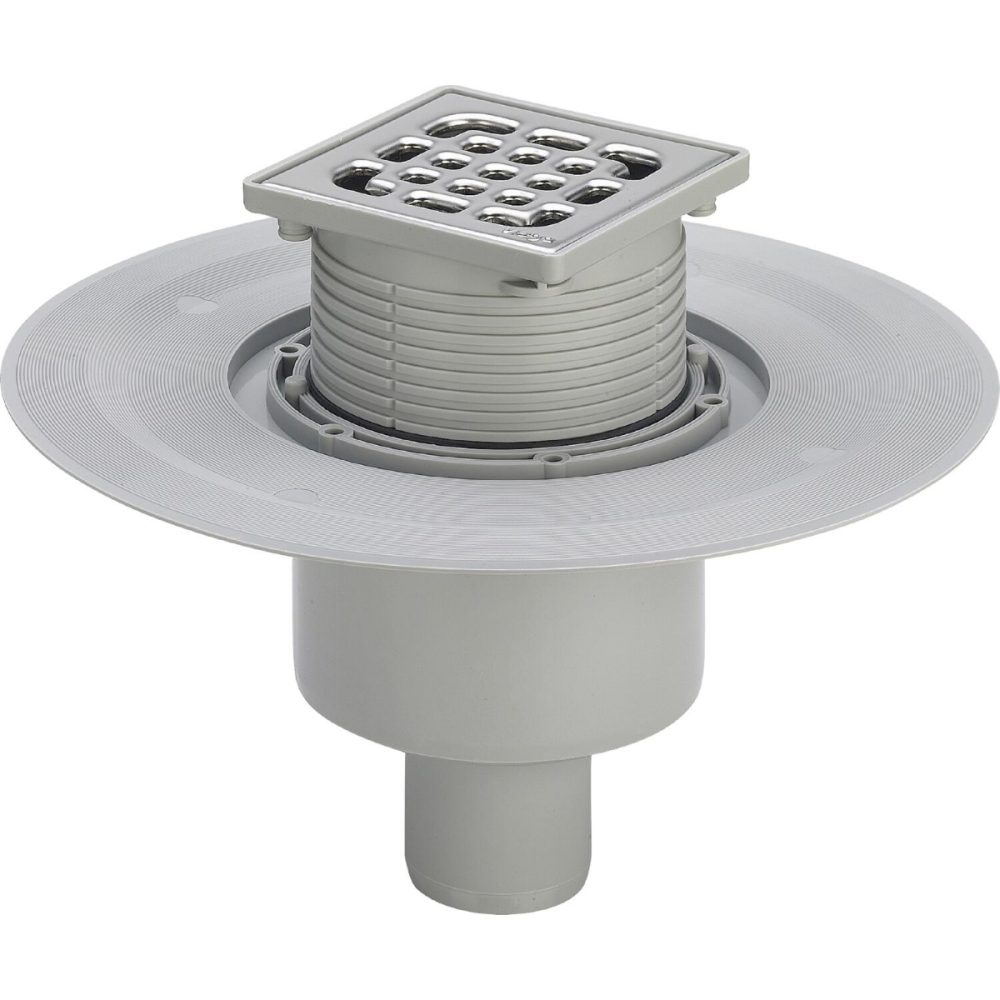

The Viega Advantix bath drain Model 4926 is intended for bathroom floor drainage and is manufactured with a plastic drain body and system dimension 100. The set includes a 100 × 100 mm rotatable and height-adjustable top, a plastic frame, and a stainless steel grate made from material 1.4301.

Additional components include a plug, sealing flange, and a removable odour trap. The drain is designed for vertical DN 50 connection and is suitable for standard bathroom installations.

Drainage performance is tested in accordance with DIN EN 1253, achieving a drainage capacity of 0.7 l/s at an accumulation height of 10 mm and 0.9 l/s at 20 mm. The product is classified with a load class of K = 300 kg and corresponds to Model 4926.

Components

• Top 100 × 100 mm, rotatable and height-adjustable

• Plastic frame

• Stainless steel grate (1.4301)

• Plug

• Sealing flange

• Removable odour trap
